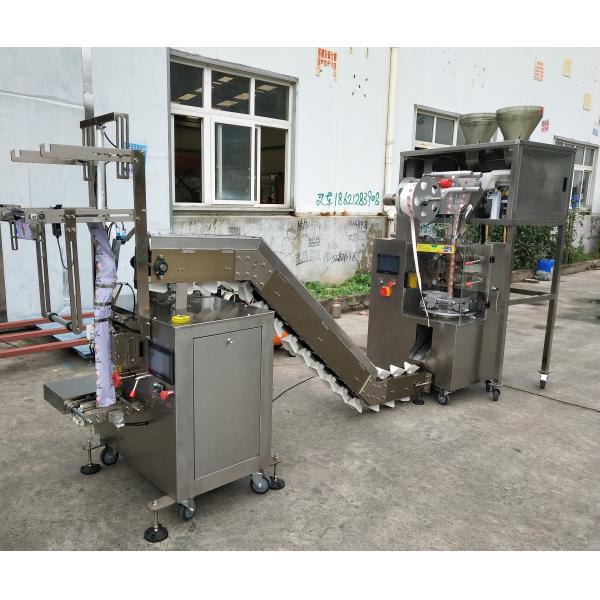

JB-180CS Automatic small Triangle Nylon tea bag packing machine for Inner and Outer tea bag packing machine
Usage
This Triangle tea bag packing machine is Mainly Used for packing tea, Chinese herbs, coffee, etc.
Inner bag as triangle bag and outter bag is normal 3 side /4 side or back seal PP bag .
Sample :
Features and function
Application:
1. The machine is suitable for filling and sealing small granule materials, such as flower tea, herbs, green tea, black tea, mix tea and so on.
2. PLC control system, color touch screen, this machine is a latest type of heated sealing packing machine, which has multifunction, can automatically packing.
3. The main feature of the machine is one-time packing for the thread, tag and outer bag, 4,avoiding hands directly contacting with stuff materials, improving the efficiency.
5,The bucket packing machine can pack inner bag into outer bag automatically,
The inner tea bag is made of filter paper or nylon, the outer bag is made of compound material, such as Paper/PE, PET/PE, etc.
6,The advantages are photoelectric location for the tag and outer bag, adjustment to the need of the content, length of bag, and tag.
7,The dimension of bag can be adjusted according to the need that to achieve the perfect shape, to upgrade the appearance for the product, then add the value of it.
Technical parameters:
| Model | JB-180CS |
| Packing speed | 15-30 bags/min |
| Packing weight | 1-7g (depends on product) |
| Bag size | L40-80mm, W60-80mm |
| Width of nylon roll | 120/140/160mm |
| Thread length | 120/170mm |
| Packing accuracy | ≤±2% (depends on product) |
| Film roll diameter | Inner: 76mm, Outer: Max 300mm |
| Voltage | 1 phase 220V |
| Powder supply | 2.2 KW, 50/60Hz |
| Air consumption | 0.8Mpa, 0.3m³/min |
| Machine dimension | 1350x1200x2400(mm) |
| Machine weight | About 650kg |
