Plastic / Wood Packaging Tea Bag Packing Machine With Color Touch Screen Display

Place of Origin : Shanghai, China (Mainland)

Brand Name : JB

Certification : CE

Price : US $5,350-9,900 / Sets | 1 Set/Sets as customers' requirements (Min. Order)

MOQ : 1 Set/Sets a

Model Number : JB-180C

Delivery Time : 25 working days

Packaging Details : wooden box

Type : Other

Condition : New

Application : Chemical, Commodity, Food, Medical, tea

Packaging Type : Bags, Barrel, Belt, Bottles, Pouch, Stand-up Pouch, plastic roll film

Packaging Material : Plastic, Wood, Paper

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 370W

Weight : 650kg

Dimension(L*W*H) : 1200*900*1900mm

After-sales Service Provided : Engineers available to service machinery overseas

aplicable Product : Tea. Chinese Herbs. Coffee. Tea-Bag Drinks

Packaging weight : 3-15 Gram/Bag

production capacity : 30-60bags/min

Motor : 220V 50/60HZ 3.7KW

Sealing type : 3/4 Sides Seal

controller : PLC

warranty : 1 year

Machine weight : 500kg

Overall Dimension : 1200*900*1900mm

Outer bag film width : ≤ 180mm

Contact Now

JB-180C 1g 2g 3g Herbal/black Tea / green Tea Bag packaging machine

1. PLC control, color touch screen display, cup volumetric filler/electronic weighter measurement, this machine is the latest type of multi-function tea bag packaging machine.

2. The main features of this machine are: one-time complete inner and outer bag packing, avoid direct contact with the material by hand.

3. Inner bag is made by filter paper, which can be automatically packed with thread and tag.Outer bag is made from compound film which can be heat sealed.

4. Machine body and product touching part are made by 304 stainless steel.

Model	YB-180C Automatic tea bag packing machine
Packing speed	20-60 bags/min
Filling range	1g-15g
Making bag size	Inner bag: Width 40-80mm; length 50-70mm Outer bag: Width 60-90mm; Length 70-120mm
Tag size	Width 40-55mm; Length 20-24mm
Thread length	155mm
Power supply	1Ph. 220V, 3.7kw
Machine dimension	1200x900x1900(mm)
Machine weight	500k

Machine main picture

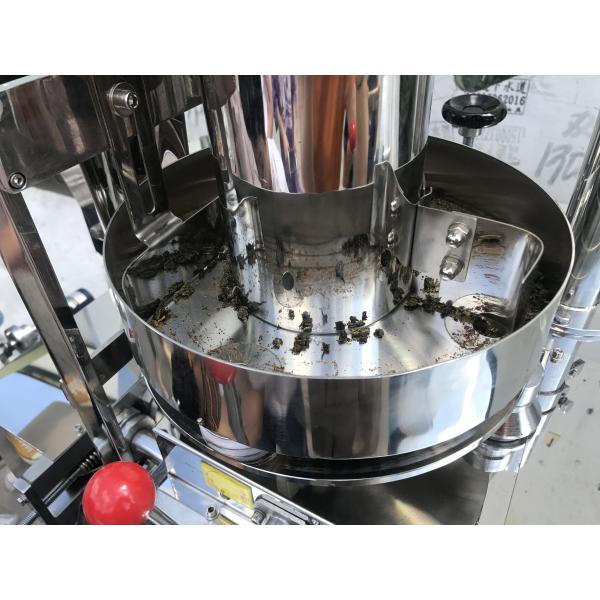

1.Volumetric measure cup weight

The machine adjustable measure cup weighting system, accurate weighting and easy to adjust

Plastic / Wood Packaging Tea Bag Packing Machine With Color Touch Screen Display

2.Touch screen display

The whole machine adpots PLC control system, color touch screen display. Easy to operate.

Plastic / Wood Packaging Tea Bag Packing Machine With Color Touch Screen Display
