Full Automatic Tea Bag Packing Machine With PLC Control System / Cup Volumetric Filler

Place of Origin : Shanghai, China (Mainland)

Brand Name : JB

Certification : CE

Price : US $7,400-7,600 / Sets | 1 Set/Sets Tea bag packing machine (Min. Order)

MOQ : 1 Set/Sets

Model Number : JB-180C

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 SET PER MONTH

Delivery Time : 20 WORKING DAYS

Packaging Details : WOODEN BOX

Type : Multi-Function Packaging Machine

Function : Embossing, Filling, Sealing, Slitting, Wrapping

Application : Chemical, Food, Medical, Double chamber tea bag with knot ties

Packaging Type : Bags, Film, Foil, Pouch, Tea granules filling packing machine

Packaging Material : Plastic, Wood, Tea granules filling packing machine

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 3.7KW

Dimension(L*W*H) : 1200*900*1900

After-sales Service Provided : Overseas service center available

name : Double chamber tea bag with knot ties

packing speed : 30-60bags/min

packing range : 1-15g (depends on product)

inner bag size : L 50-70mm, W 40-80mm

outer bag size : L 70-120mm, W 60-90mm

tag : L 20-24mm, W 40-55mm

controller : PLC

metarial : stainless steel 304

packig type : thread with tag

warranty : 1 year

Contact Now

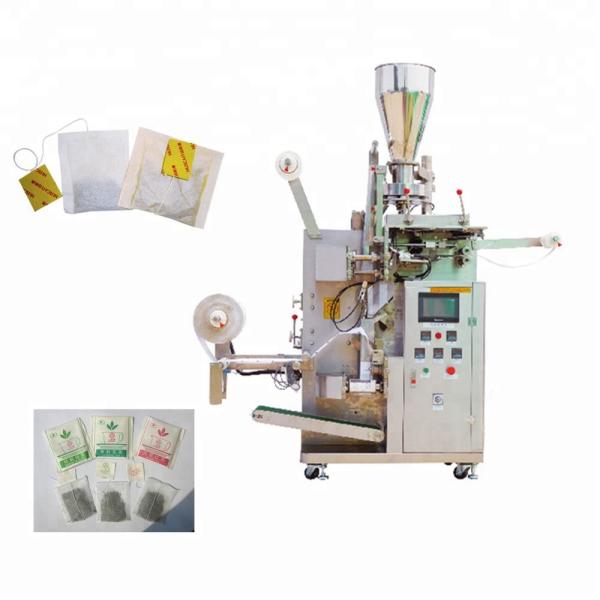

JB-180C Tea Bag Packing Machine Full Automatic Filter Paper Small Sachets Tea Bag Pouch Packing Machine With Envelop

JB-180C Tea granules filling packing machine, with filter inner packing , outer packing, thread and label, filling weight 1-15g/pack., heat sealing.

Tea bag packing machine Full automatic filter paper small sachets tea bag pouch packing machine with envelop

Used for packing tea, Chinese herbs, coffee, etc.

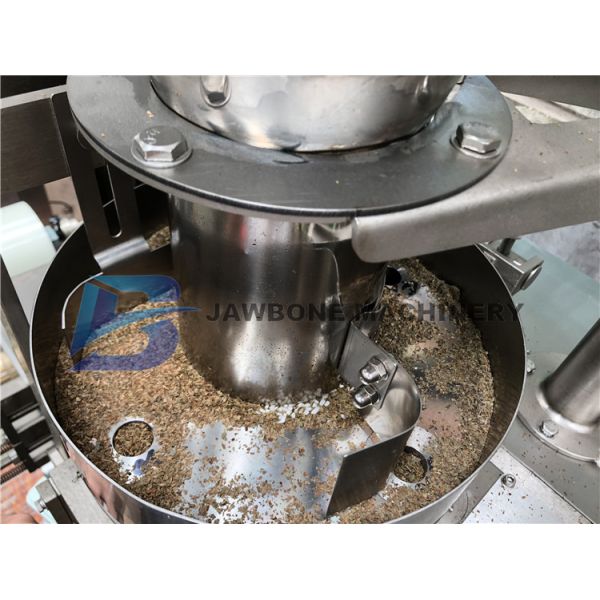

1. PLC control system, color touch screen display, cup volumetric filler/electronic weighter measurement, this machine is the latest type of multi-function tea bag packaging machine.

2. The main features of this machine are: one-time complete inner and outer bag packing, avoid direct contact with the material by hand.

3. Inner bag is made by filter paper, which can be automatically packed with thread and label. Outer bag is made from compound film.

4. Machine body and product touching part are made by 304 stainless steel.

Model	JB-180C
Sealing type	3/4 sides seal
Packing weight	3-15g (depends on product)
Inner bag size	Width 40-80mm , length 50-70mm
Outer bag size	Width 60-90mm, length 70-120mm
Outer bag film width	≤ 180mm
Production capacity	30-60 bags/min
Tag size	Width 40-55mm, length 20-24mm
Thread length	155mm
Power supply	AC220V, 50/60Hz
Power	3.7 KW
Overall dimension	L1200 × W900 × H1900mm
Net weight	500kg

Check out our Other tea bag packing machine ,coffee pod packing machine, pyrimad nylon triangle tea

Bag Packing Machine :

1)YB-180C Tea granules filling packing machine, with filter inner packing , outer packing, thread and label, filling weight 1-15g/pack., heat sealing.
