YB-420F vertical plastic bag automatic coffee powder packaging machine 500g 1kg

Place of Origin : Shanghai, China (Mainland)

Brand Name : JB

Certification : CE

Price : US $7,300-15,100 / Sets | 1 Set/Sets milk powder packaging machine (Min. Order)

MOQ : 1 Set/Sets

Model Number : JB-420F

Supply Ability : 60 sets per month

Delivery Time : 15 work days

Packaging Details : wooden box packing

Type : packing machine

Condition : New

Application : Chemical, Commodity, Food, Medical

Packaging Type : Bags, roll film

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 2.5KW

Weight : 450kg

Dimension(L*W*H) : L1320 * W920 * H1390mm

After-sales Service Provided : Engineers available to service machinery overseas

packing speed : 5-70bags/min

packing volume : 1000ml

controller : computer

making bag size : L60-300mm,W80-200mm

Film width : ≤ 420mm

Pulling film type : Double belt pull film

Power supply : AC220V, 50/60Hz

sealing type : pillow seal , Gusset bag , block bottom bag

machine type : milk powder packaging machine

Contact Now

YB-420F vertical plastic bag automatic coffee powder packaging machine 500g 1kg

Usage:
This machine is widely used to pack powder products: such as milk powder, flour, starch, coffee powder, spices, curry powder, protein powder, condiment, herbal powder, chemical and medical powder products.

Function and features:
1. This machine can automatically complete material lifting--auger filler measuring--coding--bag making--filling--sealing--counting--conveying finished products--sorting finished products.

2. PLC servo and pneumatic control system, super touch screen forms the drive control center; high reliability and the intellectualized degree, and equipped with safety protection.

3. Touch screen can store a variety of different product packaging process parameters, when replacement product, it can be used at any time without having to reset.

4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to promptly eliminate.

5. Can make hole punching device after customer’s request.

6. This machine has stainless steel type and carbon steel type for choice.

Sealing type:

pillow type seal.Gusset bag , Block bottom bag

Technical parameter

Model	JB-420F
Packing speed	10-50 bags/min
Packing range	2000ml
Film width	≤ 420mm
Making bag size	L: 60-300mm, W: 80-200mm
Packing accuracy	≤ ±1%
Power	2.5 KW
Power supply	AC220V, 50/60Hz
Seal type	Pillow seal,gusset bag,block bottom bag
Net weight	450kg
Machine dimension	L1320 × W920 × H1390mm

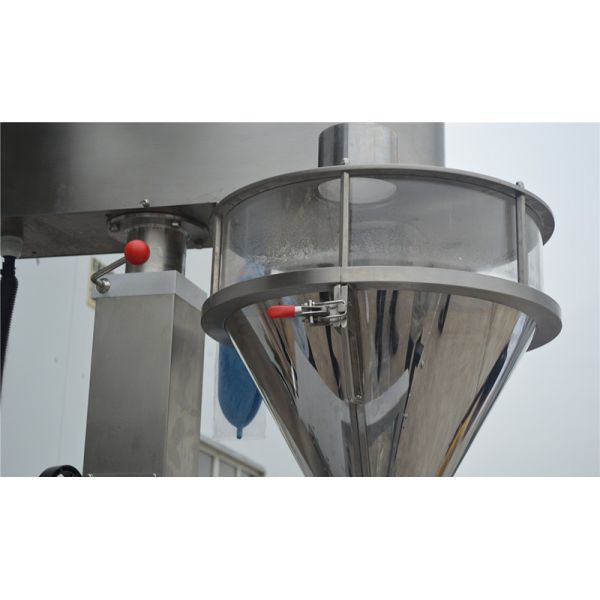

product details:

YB-420F vertical plastic bag automatic coffee powder packaging machine 500g 1kg

Company Profile:

1.Our brand has been established for ten years
2.Approximately 500 machines are sold worldwide each year
3. We attend the fair every year, customers from all over the worldcooperate with us
4. We have top engineers to provide overseas service
5. The best quality of our machine
