JB-YG4 automatic 200ml 300ml 500ml syrup medical liquid filling and capping machine, Automatic Pharmaceutical Production Line
Usage:
This machine is mainly used for syrup, beverages, soy sauce, vinegar, cod-liver oil, olive oil, liquid calcium, wine, liquid fertilizer, essential oil, toner, hair oil, laundry detergent, ink, disinfectant, injection, industrial clcohol and various medical liquid filling and capping.
Performance features:
1. Automatic liquid filling machine use plunger type metering pump filling (when the filling volume difference is large, the corresponding pump body needs to be replaced), high precision; The structure of pump adopts fast disassembled mechanism, easy to clean and disinfect.
2. PLC control system, color touch screen display, machine has function of counting automatically.
3. The filling nozzle was equipped with drip-proof device.
4. When filling liquid, the filling nozzles dive into the bottom of bottles, rising slowly, can effectively prevent the generation of bubbles.
5. Automatic filling machine shell is made of 304 stainless steel, meets GMP standard.
Parameter:
| After-sales Service Provided | Engineers available to service machinery overseas |
| Certification | CE Certificate |
| Weight | 650kg |
| Dimension(L*W*H) | 2200*1500*1900 |
| Brand Name | JB |
| Place of Origin | China (Mainland) |
| China (Mainland) | Jiangsu |
| Power | 1.6kw |
| Voltage | 220V/50HZ |
| Driven Type | Electric |
| Automatic Grade | Automatic |
| Packaging Material | Glass,Metal,Paper,Plastic,Wood |
| Packaging Type | Barrel,Bottles,Cans,Case,Cartons |
| Application | Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical |
| Condition | New |
| Product name | syrup filling machine |
| Model | JB-YG4 |
| Capacity | 10-40bottles/min |
| Filling volume | 50-500ml |
| Filling accurancy | ≤±1% |
| Filling head number | 4 |
| Net weight | 600kg |
| Adding plud/dropper head | 1 |
| Pass rate | ≥98% |
| Overall dimension | 2200*1500*1900 |

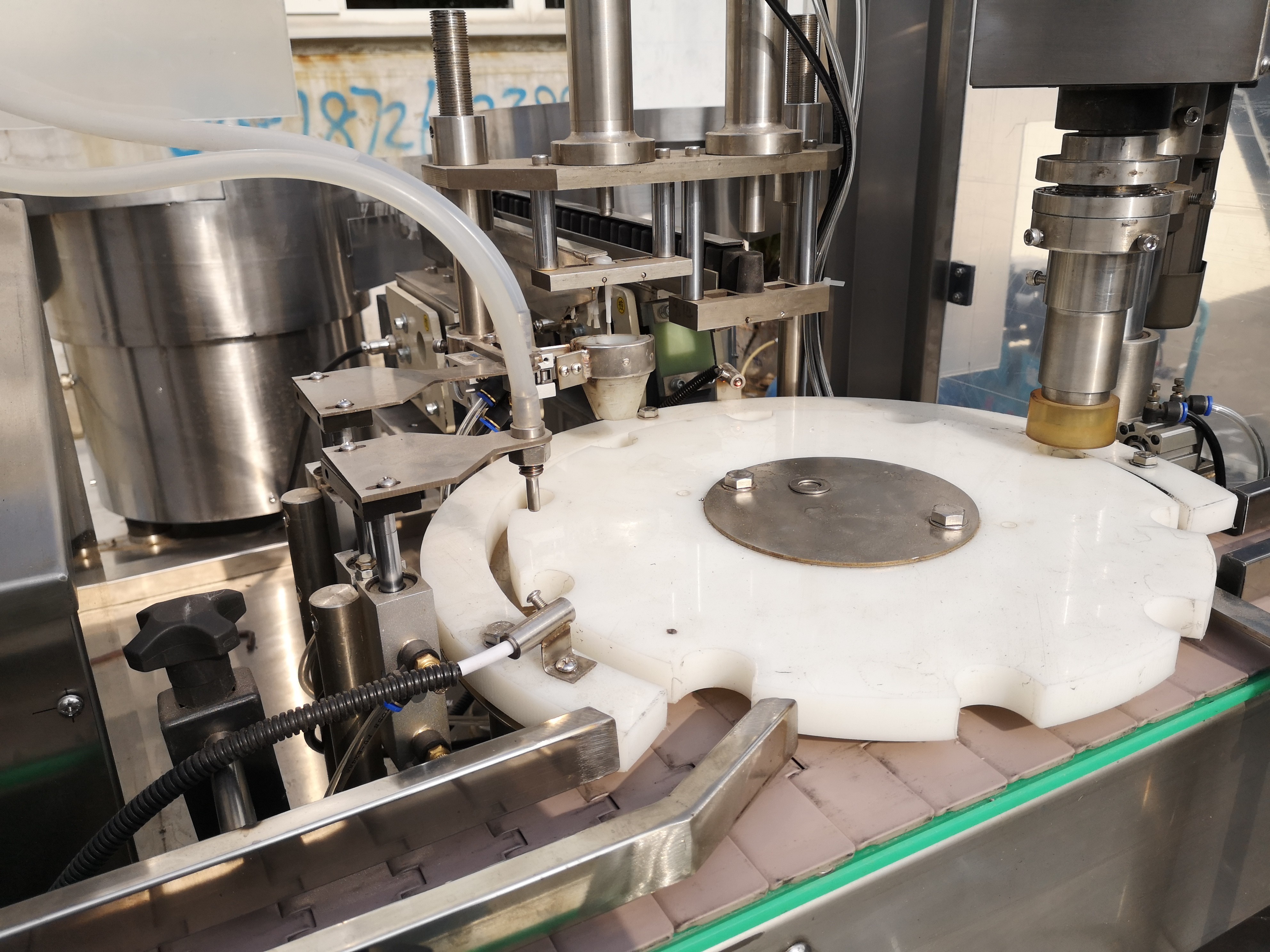

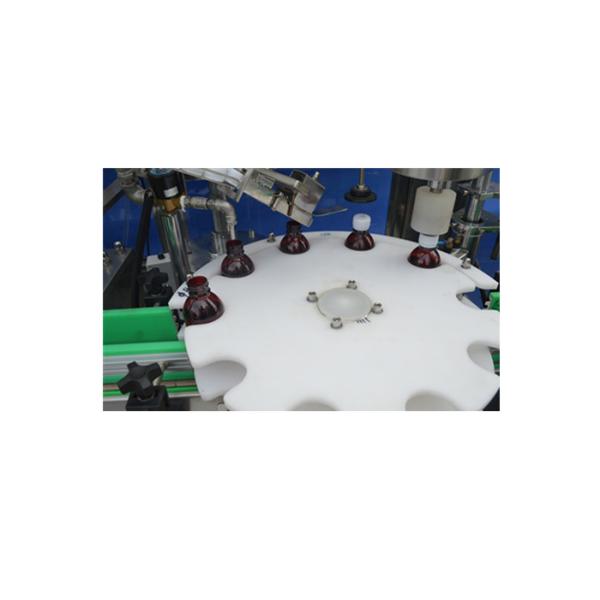

Machine detailed :
